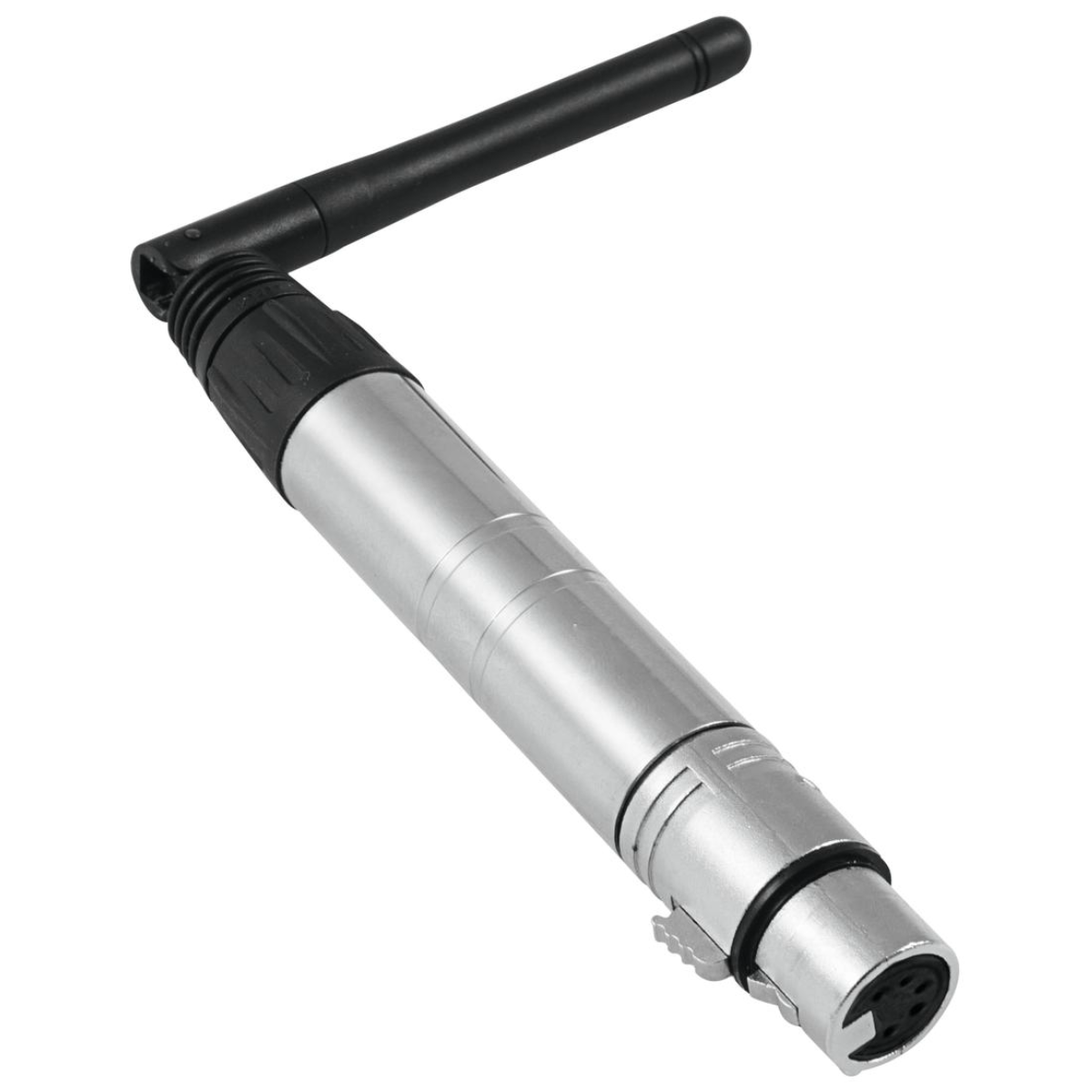

Compact wireless DMX receiver 2.4 GHz, phantom powered
- User-friendly 5-pin XLR plug (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz ISM band - license-free worldwide
- Can receive and process up to 512 DMX channels
- Controlling by DMX; QuickDMX built-in
- Use a operating range up to 400m
Power supply | 5 V DC |
IP classification | IP20 |
Power connection | Mains input 5-pin XLR (W) connector |
DMX channels | Input 512 |
DMX output | 1 x 5-pin XLR (F) |
Control | DMX; QuickDMX built-in |
Carrier frequency | 2,4 GHz |
Modulation | GFSK |
Parallel mode | Max. 6 transmitter |
Range | 400 m |
Color | Silver |
Dimensions | Length:21,2 cm |
Diameter | Ř 1,8 cm |
Weight | 100 g |
